Zinc Plating Line Galvanizing Machine Plant Hot Dipped Galvanized Line - Hot DIP Galvanizing and Cgl
Product Overview
HiTo Engineering selects high-quality species to carefully breed Zinc Plating Line Galvanizing Machine Plant Hot Dipped Galvanized Line, Hot DIP Galvanizing, Cgl based on scientific breeding methods. Zinc Plating Line Galvanizing Machine Plant Hot Dipped Galvanized Line, Hot DIP Galvanizing, Cgl is green, pollution-free, safe and healthy. Our production technology of HiTo Zinc Plating Line Galvanizing Machine Plant Hot Dipped Galvanized Line, Hot DIP Galvanizing, Cgl is ahead in the industry. Zinc Plating Line Galvanizing Machine Plant Hot Dipped Galvanized Line, Hot DIP Galvanizing, Cgl has excellent performance, stable and reliable quality. Zinc Plating Line Galvanizing Machine Plant Hot Dipped Galvanized Line, Hot DIP Galvanizing, Cgl is widely used in daily life and meets the decorative needs of various industries. The product is exported to many countries and regions all over the world.
Product Description
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
Hot - dip (aluminum) galvanizing line
The hot - dip (aluminum) galvanizing line is a set of equipments that plating a layer of zinc or aluminum alloy on the strip while in high temperature. The production line was composed of uncoiler, welder, storage tank, degreasing section equipments, continuous annealing furnace, zinc pot, air knife, skin pass, tension leveler, oiler, shear, recoiler and other equipments.
| Cold rolled low carbon steel: SPCC, SPCD, JIS G 3141 | ||
| Thickness: | 0.12-2.5mm | |
| Width: | 700-1550mm | |
| Coating type: | GI, GA, GF | 30-300g/m2 |
| Product grade: | CQ,DQ,G550 | JIS G 3302 |
| Line Max.speed: | Entry 260mpm, processing 200mpm, exit 260mpm | |
| Capacity: | 60,000-300,000 MT/Y | |
| Energy saving: | Heat recovery system from waste gas | |
Continuous Galvanizing / Galvalume Line:
Equipment Characteristics:
1. Equipped with steel chemical cleaning or high efficiency electrolytic cleaning section, optional cleaning mode combining horizontal spray with vertical immersion spray, and unique electrolytic cleaning and ejecting mixing technology, which achieve higher current efficiency and avoid secondary oil pollution of plate out of slot , liquid surface directive overflow to ensure that the electrolyte surface rarely burst air bubble, and high safety of system service.
2. The combination of non-oxidizing (NOF) and radiant tube heating (RTH) has the advantages of fast heating speed, high thermal efficiency, more finer double cross-limiting air-fuel ratio control method is adopted , special refractory material is selected, which can significantly improve the insulation effect and service life of the high temperature zone.
3. After annealing, the strip cooling adopts protective gas cycling spray cooling way with variable frequency speed control. The use of high-pressure high-speed jet, strip cooling is quick and uniform, which can accurately control the process temperature of strip entering into zinc pot.
4. Straightening machine and finishing machine can effectively improve the finished product surface and shape quality, and improve product coating and cold crushing mechanical properties.
5. Adopt flue gas waste heat recovery technology, recover low temperature flue gas waste heat through the flue gas - water heat exchange or waste heat steam boiler, supply the recovered waste heat to heat liquid cleaning section , thus to improve the utilization of heat and reduce product energy consumption.
6. The use of jet-type ceramic induction heating zinc pot, with fast heating, uniform temperature and alloy composition, long service life and less slag and other advantages. The furnace nose is equipped with wet nitrogen and circulating zinc pump device inside, which can significantly improve the strip surface accuracy, especially suitable for coated substrate quality requirements of home appliances .
7. The coating thickness measuring instrument can be used to monitor the actual thickness of the coating in real time and guide the precise adjustment of the air knife.
8. The use of fingerprint-resistant coating machine with fast switching device can effectively optimize the equipment layout of process section, reduce the investment in plant construction, and obtain accurate organic or composite coating on the strip surface.
9. Control system adopts vector frequency control, CPC and EPC correction, field bus control technologies, with good man-machine interface and stable and reliable equipment service.
My factory

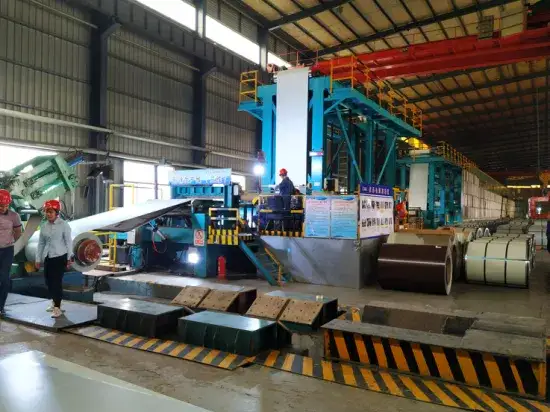

Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 2500-4500 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
Company Introduction
With the location in Weifang HiTo Equipment Engineering Co.,Ltd, referred to as HiTo Engineering, integrates R&D, production, sales and service. We are chiefly dealing with management. Based on a relatively strong brand awareness, HiTo Engineering combines the trend of the times with our own development to establish a lighting brand called HiTo. HiTo Engineering advocates to focus on customer's feelings and emphasizes humanized service. We also wholeheartedly serve for every customer with the work spirit of 'strict, professional and pragmatic' and the attitude of 'passionate, honest, and kind'. With a great technical and management team, HiTo Engineering is dedicated to providing you with excellent custom services.
HiTo Engineering's are all qualified by national certification. If you have any needs, please contact us as soon as possible.
