Continuous annealing hot-dip 55% Al-Zinc galvalume line
The size, shape and material of hot dip galvanizing line, galvanizing line cost, continuous galvanizing line process, annealing galvanizing line, CGL continuous galvanizing line can be made by client's requirements.
-
HT-CGL-1250
-
HiTo
-
8479819000
Weifang HiTo Equipment Engineering Co.,Ltd supply continuous hot-dip galvanizing line, steel aluminum colour coating line, we have completed Dubai, Bangladesh, Algeria, Egypt, India, Russia, Vietnam, Kenya... projects.

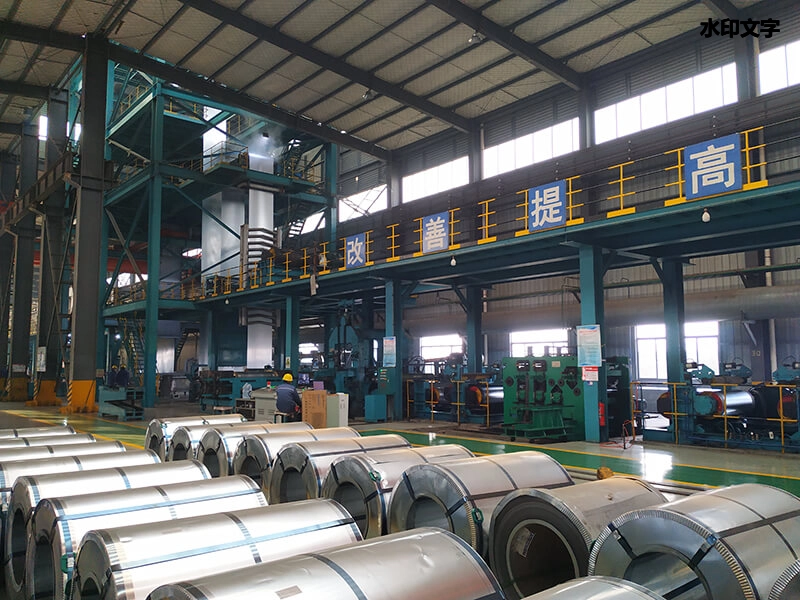

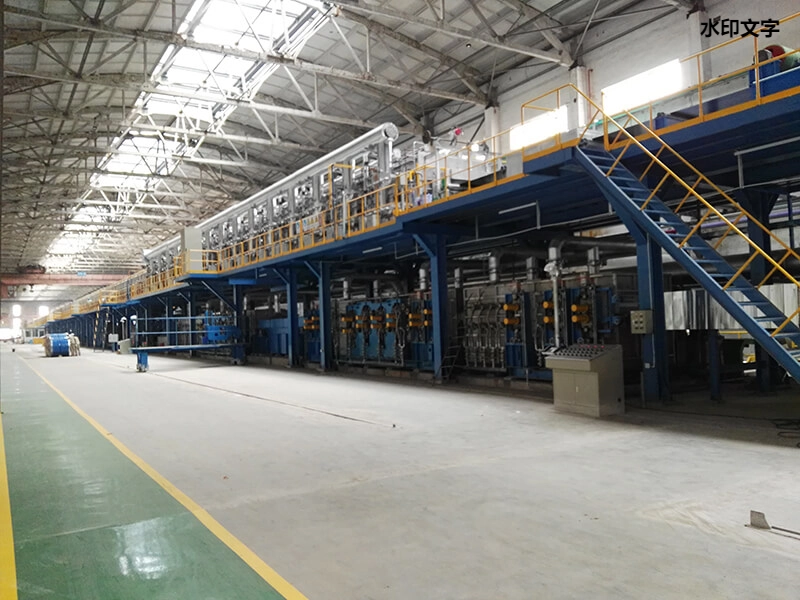

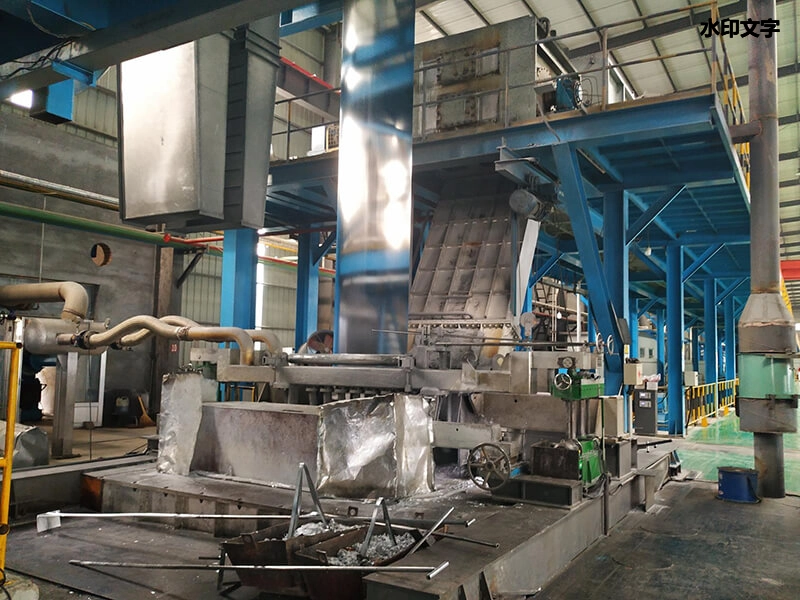

The hot dip (aluminum) galvanizing line is a set of equipments that soaking a layer of zinc or aluminum zinc alloy on the strip while in high temperature. The production line was composed of uncoiler, welder, storage looper(accumulator), degreasing section, continuous annealing furnace, zinc pot, air knife, skin-pass mill, tension leveler, oiler, shear, recoiler and other equipments.
Cold rolled low carbon steel 0.12-2.5mm x 800-1550mm, SPCC, SPCD, JIS G 3141
Coating type: GI,GA,GF 60-300g/m2
Product grade: CQ,DQ,G550 JIS G 3302
Line speed: Entry 0-260mpm, processing 0-200mpm, exit 0-260mpm Capacity: 100,000 - 300,000 TPY
Energy saving: Heat recovery system from waste gas

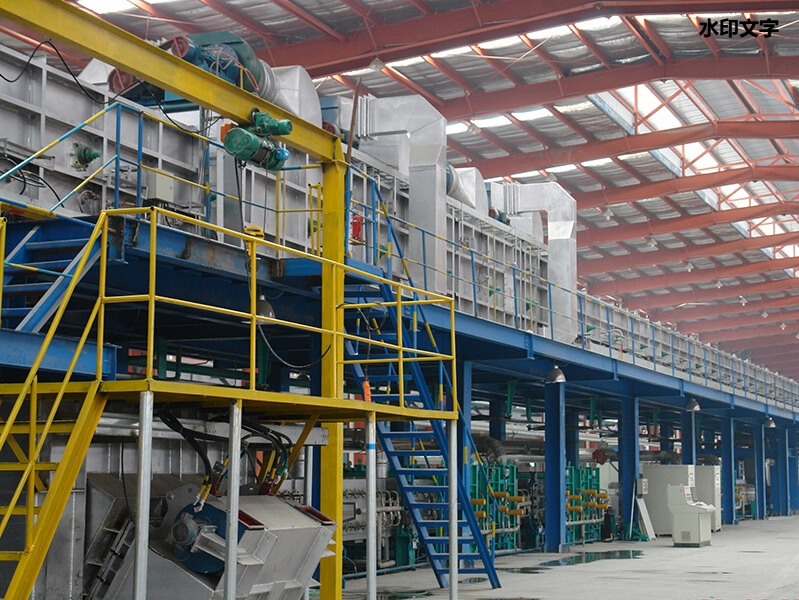

Annealing furnace: Radiant tubes heating, vertical or horizontal
The product caters to the market requirements and is going to be more widely used in the market.
