Every year, the continuous galvanized line makes a great contribution to Weifang HiTo Equipment Engineering Co.,Ltd in profit making. In fact, it is a product funded greatly and developed continuously. Our professional designers, depending on the annual market survey and comment collection, may modify the product by looking, function, etc. This is an important way for the product to maintain the leading role in the market. Our technicians are keys in monitoring and controlling the production which is aimed at 100% quality guarantee. All this are reasons for this product of excellent performance and wide applications.
Our HiTo brand core is based on one main pillar - Striving for Excellence. We are proud of our very powerful organization and our highly capable and motivated workforce – people who take responsibility, take calculated risks and make bold decisions. We rely on the willingness of individuals to learn and grow professionally. Only then can we achieve sustainable success.
HiTo Engineering not only provides customers with remarkable continuous galvanized line, but also offers patient and professional customer service. Our staff are always standby to answer the questions and solve the problems.
HiTo Eq. Eng. manufacturing of double-coated, double-baked CCL, pre-painted steel sheets with good weather resistance, primarily used in construction and home appliances, is possible.
Supply three-coating, three baking color coating line too, multi-color painter with color coating line for pattern PPGI/PPGL, And in-line tension leveler can also be installed to manufacture straightened steel sheets.
HiTo Engineering CEO-JACK SUN
Aluminium is a perfect substrate for colour coating, given its flat matt finish and high corrosion resistance. Aluminum coils 3 serial number is the most commonly used.Aluminium consumption in the construction industry is growing, due to its weight differential compared to steel, making it suitable for long span roofing sheets, sandwich panels, composite panels and many other construction applications.
Methods of coating aluminium for construction applications are typically similar to that of steel, however, the sensitive surface, soft alloys, different micro structure and conductivity means some subtle differences must be considered when designing equipment for coating aluminium. The points below are aimed at highlighting these requirements.
Multi-color printing system can be added into coating line to get pattern aluminium, The decorative effect is richer and more beautiful. Such as wood pattern, marble pattern.
Carbon Steel Coils Continuous Annealing Hot-dip Galvanizing Line, Galvalume Line
The formation process of the hot-dip galvanized layer is the process of forming an iron-zinc alloy between the iron matrix and the outermost pure zinc layer. The iron-zinc alloy layer is formed on the surface of the workpiece during hot-dip coating, which makes the iron and pure zinc layer very close. Good combination, the process can be simply described as: when the iron workpiece is immersed in molten zinc, a solid solution of zinc and α iron (body core) is first formed on the interface. This is a crystal formed by dissolving zinc atoms in the base metal iron in a solid state.
The two metal atoms are fused, and the attraction between the atoms is relatively small. Therefore, when zinc reaches saturation in the solid solution, the two element atoms of zinc and iron diffuse each other, and the zinc atoms that have diffused (or infiltrated) into the iron matrix migrate in the matrix lattice, and gradually form alloys with iron and diffuse The iron and zinc in the molten zinc form an intermetallic compound FeZn13, which sinks into the bottom of the hot-dip galvanizing pot, which is called zinc dross. When the workpiece is removed from the zinc immersion solution, a pure zinc layer is formed on the surface, which is a hexagonal crystal. Its iron content is not more than 0.003%.
Hot-dip galvanized layer protection performance
The thickness of the electro-galvanized layer is usually 5-15μm, and the hot-dip galvanized layer is generally above 65μm, even as high as 100μm. Hot-dip galvanizing has good coverage, dense coating and no organic inclusions. As we all know, the mechanism of zinc resistance to atmospheric corrosion includes mechanical protection and electrochemical protection. Under atmospheric corrosion conditions, there are protective films of ZnO, Zn(OH)2 and basic zinc carbonate on the surface of the zinc layer, which can slow down the corrosion of zinc to a certain extent.
The layer protective film (also called white rust) is damaged and a new layer is formed. When the zinc layer is seriously damaged and the iron matrix is endangered, zinc will produce electrochemical protection to the matrix. The standard potential of zinc is -0.76V, and the standard potential of iron is -0.44V. When zinc and iron form a microbattery, zinc is dissolved as an anode. Protected as a cathode. Obviously, hot-dip galvanizing has better atmospheric corrosion resistance to base metal iron than electro-galvanizing.
Formation control of zinc ash and slag during hot-dip galvanizing
Zinc ash and zinc slag not only seriously affect the quality of the zinc dipping layer, but also cause the coating to be rough and produce zinc nodules. Moreover, the cost of hot-dip galvanizing is greatly increased. Usually, the zinc consumption is 80-120kg per 1t workpiece. If the zinc ash and dross are serious, the zinc consumption will be as high as 140-200kg.
Controlling the zinc carbon is mainly to control the temperature and reduce the scum produced by the oxidation of the zinc liquid surface. Some domestic manufacturers use refractory sand, charcoal ash, etc. Foreign countries use ceramic or glass balls that have low thermal conductivity, high melting point, low specific gravity, and do not react with zinc liquid, which can reduce heat loss and prevent oxidation. This kind of ball is easy to be pushed away by the workpiece and has no adhesion to the workpiece. Side effect.
For the formation of zinc dross in zinc liquid, it is mainly a zinc-iron alloy with extremely poor fluidity formed when the iron content dissolved in the zinc liquid exceeds the solubility at this temperature. The zinc content in the zinc dross can be as high as 95%, which is hot-dip galvanizing. The key to the high cost of zinc.
From the solubility curve of iron in zinc liquid, it can be seen that the amount of dissolved iron, that is, the amount of iron loss, is different at different temperatures and different holding times. At around 500℃, the iron loss increases sharply with heating and holding time, almost in a linear relationship.
Below or above the range of 480～510℃, the iron loss increases slowly with time. Therefore, people call 480～510℃ the malignant dissolution zone. In this temperature range, the zinc solution will corrode the workpiece and the zinc pot the most severely. The iron loss will increase significantly when the temperature is above 560℃. If the temperature is above 660℃, the zinc will destructively etch the iron matrix. The zinc dross will increase sharply and the plating will not be possible. . Therefore, plating is currently carried out in the two regions of 450-480°C and 520-560°C.
HiTo Equipment Engineering Company has supplied two color coating production line to Bangladesh market, and each one capacity is more than the single machine production capacity of the current operating production line, The huge demand market in Bangladesh is the biggest driving force behind the improvement of production lines, and more and more factories are considering updating new production lines.

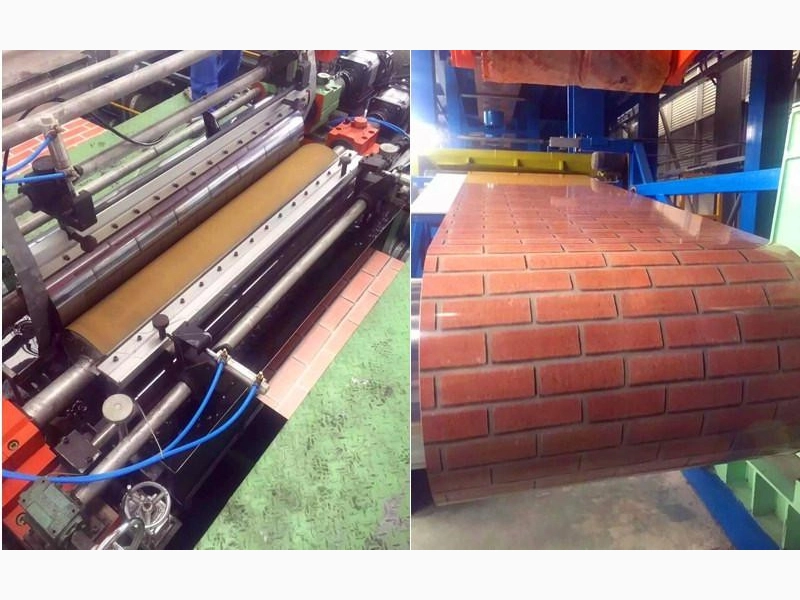

The modern color coating production line has added a printing equipment process section, which can produce beautiful patterns and colors, such as flowers, wood grain, traditional patterns, stacked stone patterns, etc. However, the investment on equipment is also enormous.
HiTo has completed the shipment of equipment to the customer in Bangladesh in February 2024. And HiTo installation term will go to Bangladesh to start installation work, We will start the debugging work of the entire production line in three months and help the customer start production as soon as possible to achieve the fastest profit
HiTo Equipment Engineering supply UAE color coating line- CCL 2020

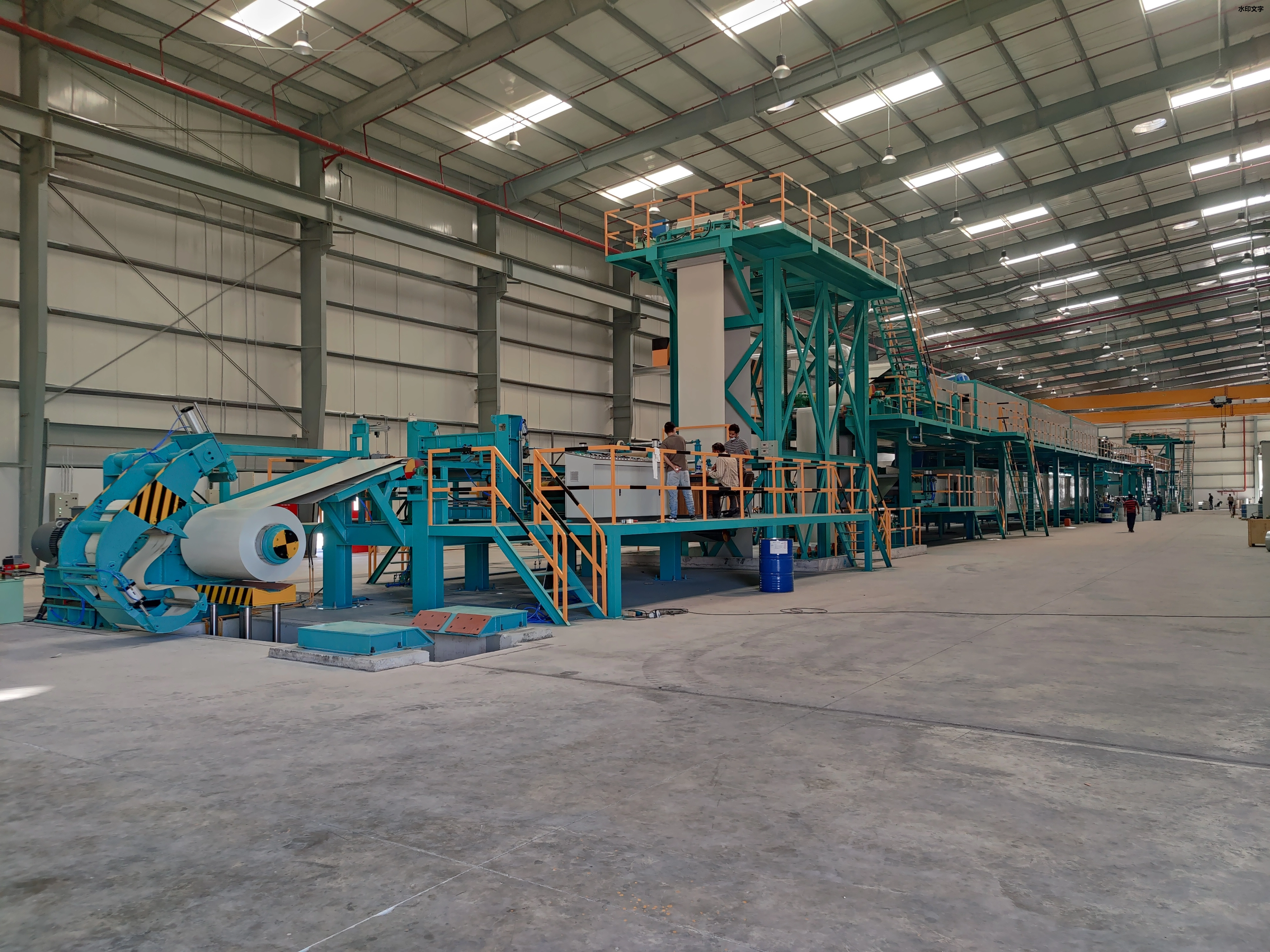

In 2019, the UAE customer signed a continuous color coating line contract with Hito Engineering. After four months of production and assembly, and foundation construction of the customer's factory, the installation conditions are available at the customer's site.
We spent more than two months to complete the installation of the whole production line, and then succeeded in single machine commissioning, and no-load commissioning of the whole line.
Our workers overcame many difficulties, were not afraid of the threat of the COVID-19, and worked hard, Thanks for HiTo all workers.
In january2020, it was officially put into commercial operation.
Now the customer's production line has been running stably for two years, and has been highly recognized by the customer.
