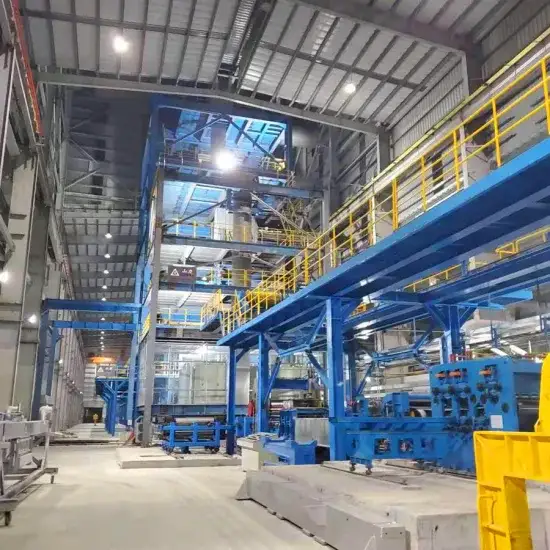

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide - Hot DIP Galvanizing and Cgl 1

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide - Hot DIP Galvanizing and Cgl 2

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide - Hot DIP Galvanizing and Cgl 3

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide - Hot DIP Galvanizing and Cgl 4

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide - Hot DIP Galvanizing and Cgl 5

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide - Hot DIP Galvanizing and Cgl 6

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide - Hot DIP Galvanizing and Cgl 7

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide - Hot DIP Galvanizing and Cgl

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Warranty:

12 Months

After-sales Service:

Yes

Model NO.:

CGL

Inquiry

Write a Review

Raw Material

SPCC, Spcd,Cr

Capacity

60000-300000mts

Width

700-1550mm

Thickness

0.15-2.0mm

Production Capacity

10 Sets

HS Code

8543300090

Origin

China

Trademark

HiTo

Specification

2100CBM

Transport Package

Container

Speed

60-200mpm

Condition

New

Certification

ISO

Substrate

Steel

Coating

Galvanized

Type

Coating Production Line

Product Overview

HiTo Engineering's are diverse in color, multiple in type, novel in design and comfortable in touch. They are waterproof and moisture-proof with good breathability. HiTo Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide, Hot DIP Galvanizing, Cgl is designed to be as accessible and usable as possible. We adopt statistical quality control technology to ensure stable product quality. Weifang HiTo Equipment Engineering Co.,Ltd has accumulated good management experience and formed good service concept.

Product Description

Innovation is our Mission. It is key for providing our customers with a competitive advantage. Our innovative engineering team applies our technology to offer a tailor made solution to your individual requirements consistent with your preferences, production goals and budgets.

The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide

Hot - dip (aluminum) galvanizing line
The hot - dip (aluminum) galvanizing line is a set of equipments that plating a layer of zinc or aluminum alloy on the strip while in high temperature. The production line was composed of uncoiler, welder, storage tank, degreasing section equipments, continuous annealing furnace, zinc pot, air knife, skin pass, tension leveler, oiler, shear, recoiler and other equipments.

Cold rolled low carbon steel: SPCC, SPCD, JIS G 3141
Thickness:	0.12-2.5mm
Width:	700-1550mm
Coating type:	GI, GA, GF	30-300g/m2
Product grade:	CQ,DQ,G550	JIS G 3302
Line Max.speed:	Entry 260mpm, processing 200mpm, exit 260mpm
Capacity:	60,000-300,000 MT/Y
Energy saving:	Heat recovery system from waste gas

Continuous Galvanizing / Galvalume Line:

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide

Equipment Characteristics:

1. Equipped with steel chemical cleaning or high efficiency electrolytic cleaning section, optional cleaning mode combining horizontal spray with vertical immersion spray, and unique electrolytic cleaning and ejecting mixing technology, which achieve higher current efficiency and avoid secondary oil pollution of plate out of slot , liquid surface directive overflow to ensure that the electrolyte surface rarely burst air bubble, and high safety of system service.
2. The combination of non-oxidizing (NOF) and radiant tube heating (RTH) has the advantages of fast heating speed, high thermal efficiency, more finer double cross-limiting air-fuel ratio control method is adopted , special refractory material is selected, which can significantly improve the insulation effect and service life of the high temperature zone.
3. After annealing, the strip cooling adopts protective gas cycling spray cooling way with variable frequency speed control. The use of high-pressure high-speed jet, strip cooling is quick and uniform, which can accurately control the process temperature of strip entering into zinc pot.
4. Straightening machine and finishing machine can effectively improve the finished product surface and shape quality, and improve product coating and cold crushing mechanical properties.
5. Adopt flue gas waste heat recovery technology, recover low temperature flue gas waste heat through the flue gas - water heat exchange or waste heat steam boiler, supply the recovered waste heat to heat liquid cleaning section , thus to improve the utilization of heat and reduce product energy consumption.
6. The use of jet-type ceramic induction heating zinc pot, with fast heating, uniform temperature and alloy composition, long service life and less slag and other advantages. The furnace nose is equipped with wet nitrogen and circulating zinc pump device inside, which can significantly improve the strip surface accuracy, especially suitable for coated substrate quality requirements of home appliances .
7. The coating thickness measuring instrument can be used to monitor the actual thickness of the coating in real time and guide the precise adjustment of the air knife.
8. The use of fingerprint-resistant coating machine with fast switching device can effectively optimize the equipment layout of process section, reduce the investment in plant construction, and obtain accurate organic or composite coating on the strip surface.
9. Control system adopts vector frequency control, CPC and EPC correction, field bus control technologies, with good man-machine interface and stable and reliable equipment service.

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide

My factory

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide

Recently, we have undertaken the site of the project

Supplier Continuous Hot DIP Galvanizing Line for Production Gi Hito Provide

FAQ

Give us the connected electrical load of machine in KW
A: 2500-4500 Kw

We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.

Can I choose a configuration
A:Yes,sure

Company Introduction

Located in Weifang HiTo Equipment Engineering Co.,Ltd is an integrated and standardized enterprise. The business range covers from R&D and production to processing and sales. are key products. HiTo Engineering insists on the characteristic and differentiation of products. We established a brand called HiTo. Our company has built up a comprehensive after sales service system. We are trying our best to provide timely, convenient and thoughtful consulting and service to answer customers' different doubts. HiTo Engineering is able to undertake the manufacture of and provide complete custom services. We have a large-scale scientific research and production base, multi advanced production equipment and a professional design and production team.
If you have any questions, feel free to consult HiTo Engineering online. We are available in 24 hours.
