PPGI/PPGL/Color Coated Steel/Prepainted Steel Coil Production Line - Color Recovery Line and Color Coating Line
Quick Overview
HiTo Engineering guarantees the high yield, stable production and good quality of PPGI/PPGL/Color Coated Steel/Prepainted Steel Coil Production Line, Color Recovery Line, Color Coating Line from the root. The production, in line with strict requirements, is carried out based on good species as well as mechanized and automated production mode. Thanks to the upgrading technology and creative ideas, the design of HiTo PPGI/PPGL/Color Coated Steel/Prepainted Steel Coil Production Line, Color Recovery Line, Color Coating Line is especially unique in the industry. The product excels in quality, performance, function, durability, etc. PPGI/PPGL/Color Coated Steel/Prepainted Steel Coil Production Line, Color Recovery Line, Color Coating Line of HiTo Engineering can be used in various scenarios in different fields. The good characteristics make the product highly marketable in the global market.
Product Description
Weifang HiTo Equipment Engineering Co.,Ltd
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
- Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
- Raw material:cold rolled strip,GI,GL,aluminum strip, 3-15Tons
- Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
- Process speed: 30 - 200m/min
- Production capacity: 30,000-300,000 Tonnes/year
Process Flow of the color coating line:
We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support
| Nominal Thickness | Allowable Deviation of Thickness in Case of the Following Thicknesses | |||
| General Precision PT.A | High Precision PT.B | |||
| ≤1200 | >1200-1500 | ≤1200 | >120-1500 | |
| 0.20-0.40 | ±0.05 | ±0.06 | ±0.03 | ±0.04 |
| >0.40-0.60 | ±0.06 | ±0.07 | ±0.04 | ±0.05 |
| >0.60-1.0 | ±0.07 | ±0.08 | ±0.05 | ±0.06 |
Factory

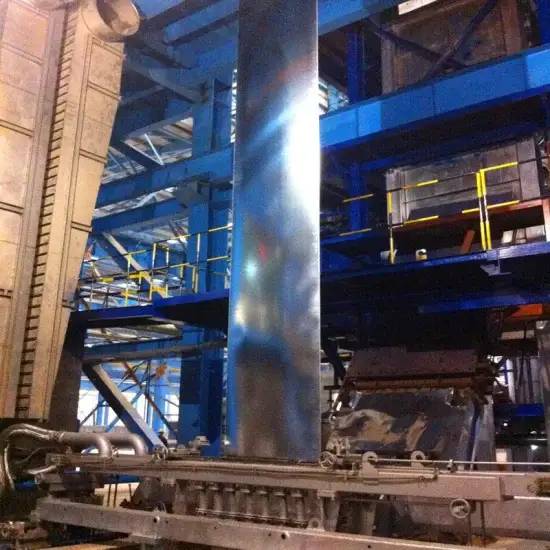

Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 850-1000 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
Company Information
Weifang HiTo Equipment Engineering Co.,Ltd (HiTo Engineering), located in is a specialized, automated, and technological company, mainly producing HiTo Engineering adheres to the enterprise spirit - that is people-oriented, sincere and trustworthy. We follow the business concept of 'talent is the foundation, sci-tech is the guide, management is the basis, quality is the center'. With a focus on the development tendency of domestic and foreign markets, we strive to achieve product differentiation depending on technological innovation. Our goal is to continuously provide more quality products and services for consumers. Our company has a professional team integrating research and development, management, production, quality inspection, marketing and after-sales service. It lays a solid foundation for our development. With a focus on HiTo Engineering is dedicated to providing reasonable solutions for customers.
We provide discounts for you. Please contact HiTo Engineering for more information!
