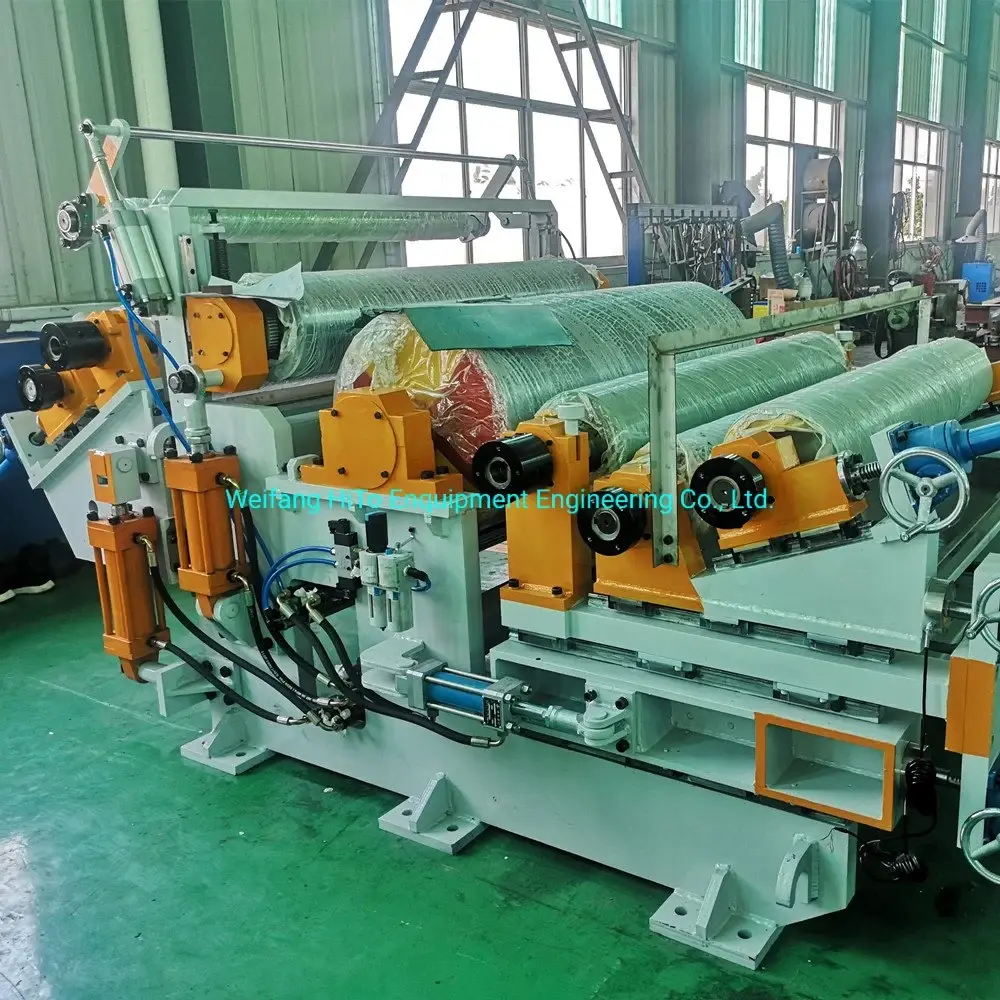

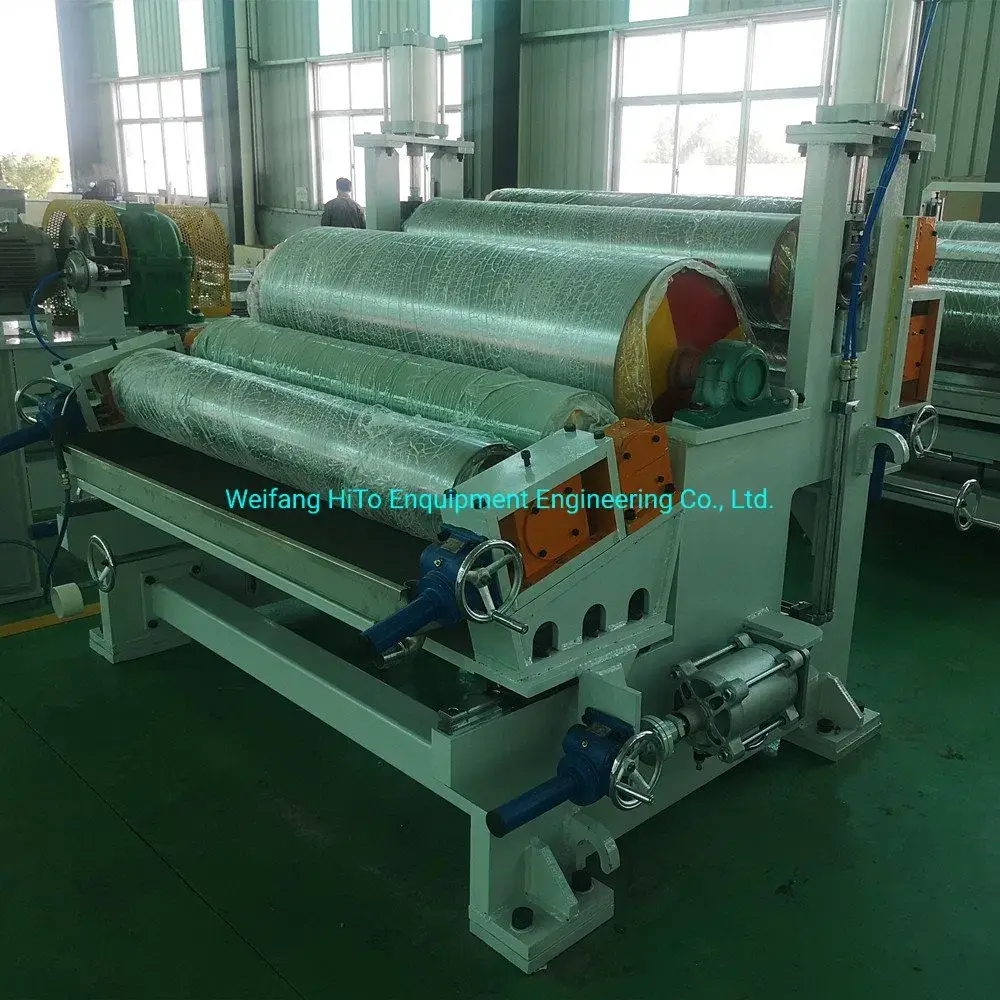

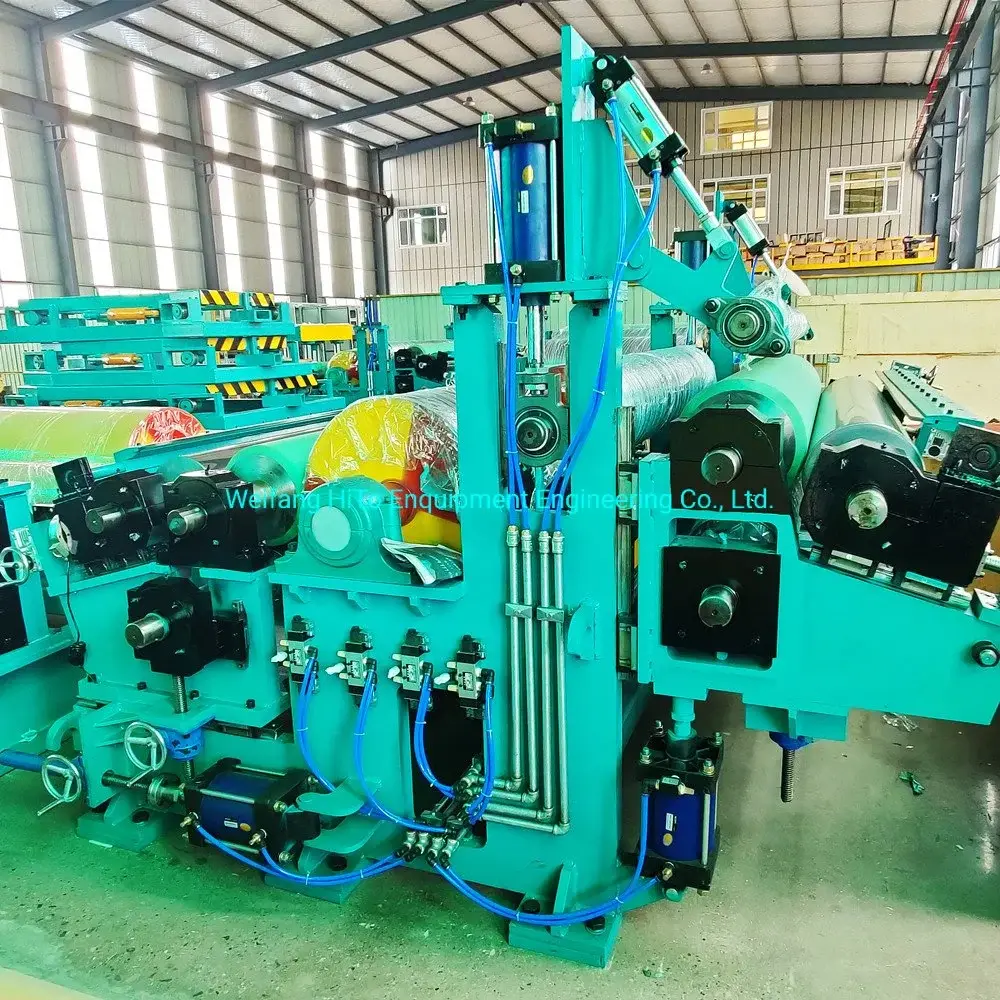

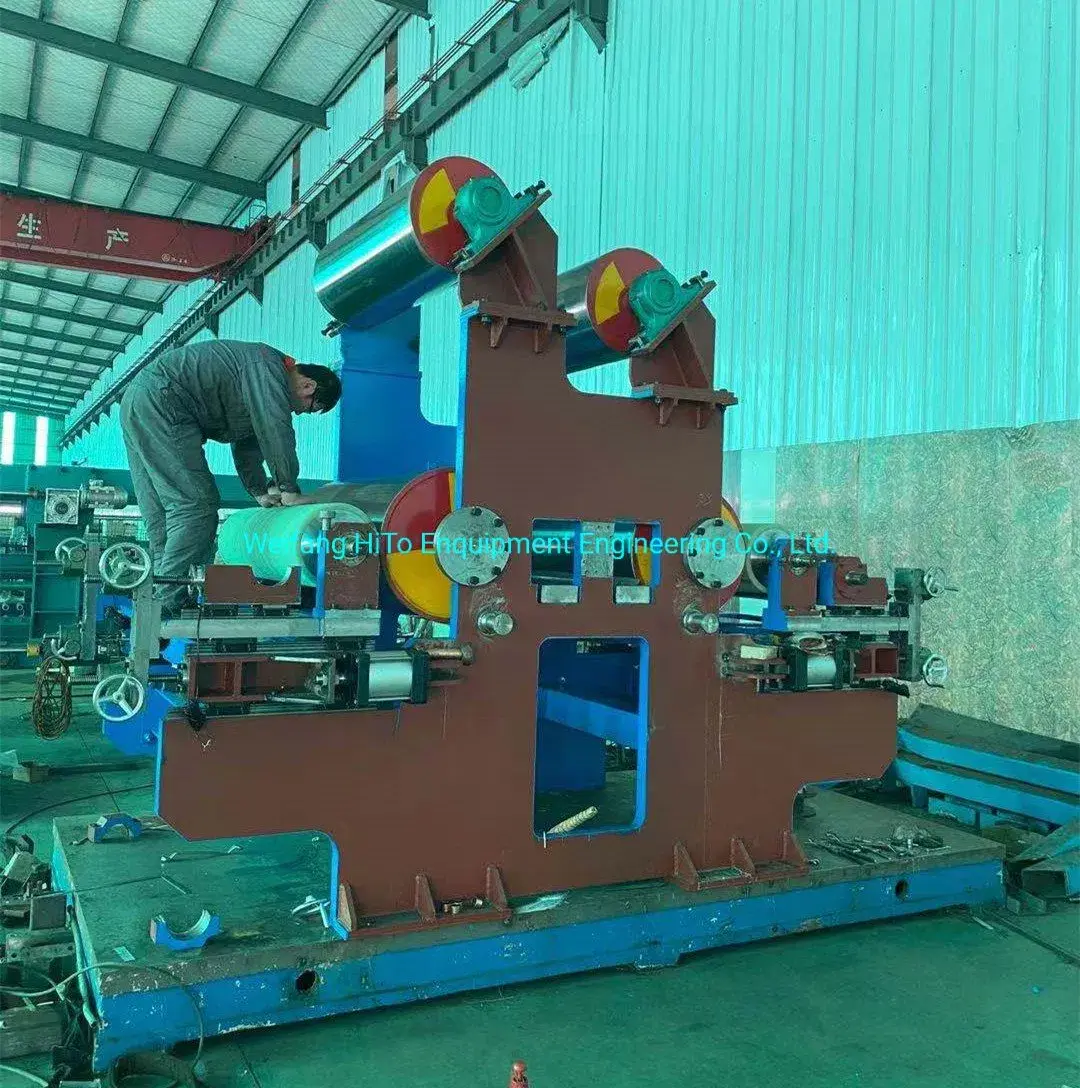

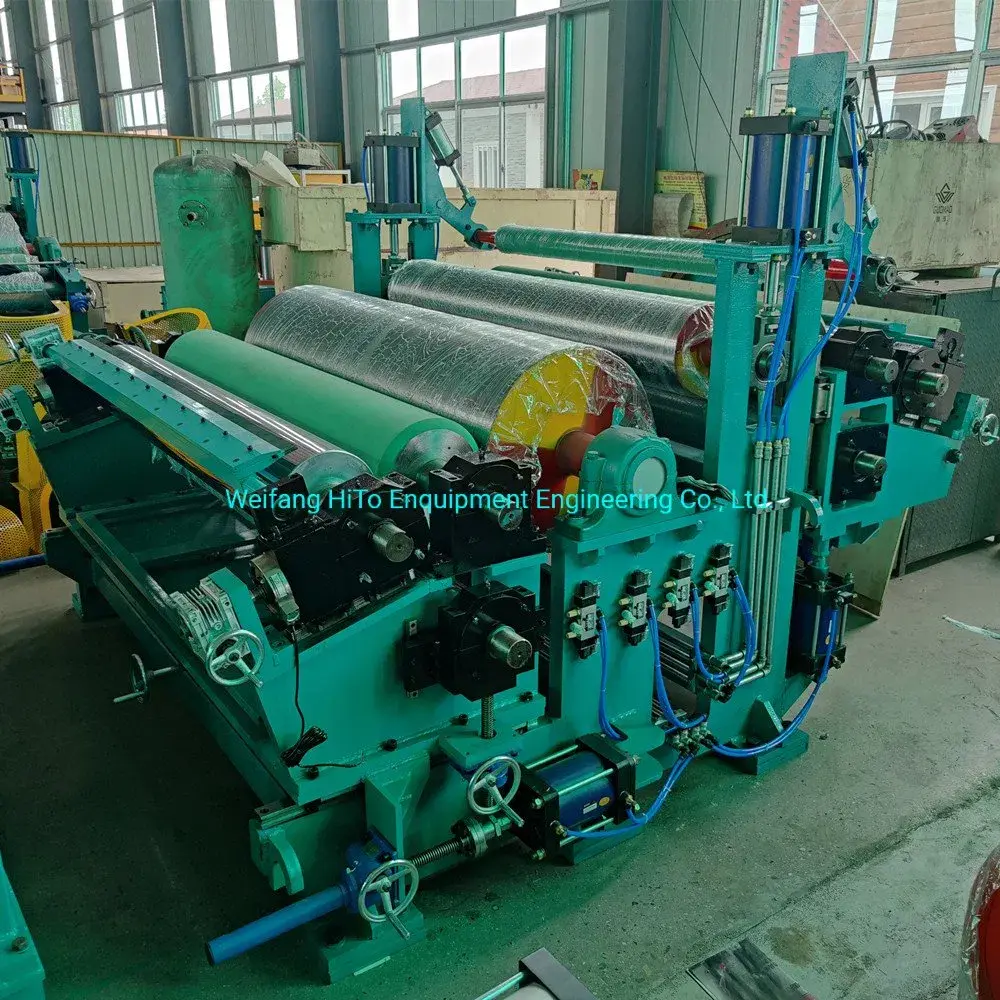

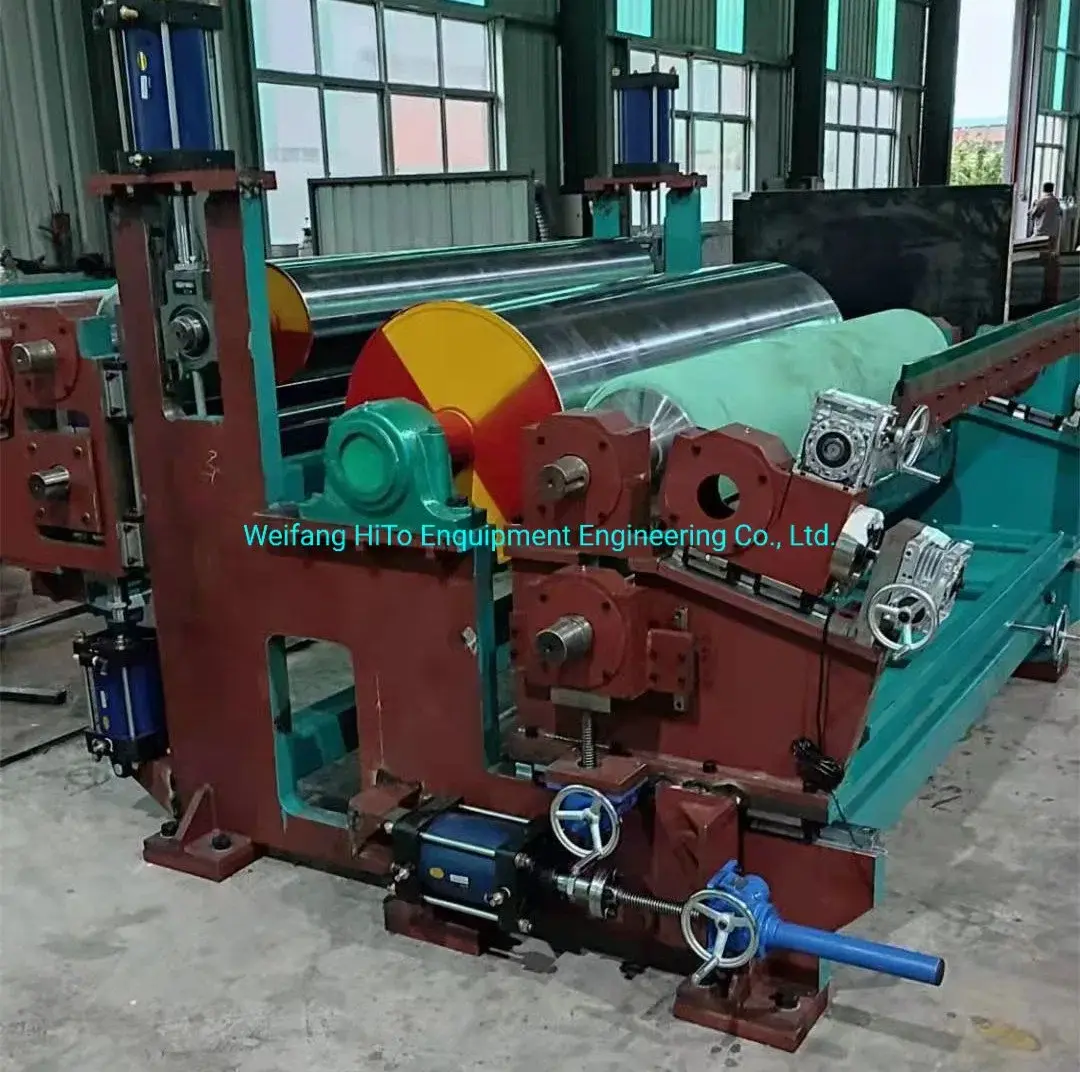

Coil Coating Line 2/3/4 by HiTo 1
Coil Coating Line 2/3/4 by HiTo 2
Coil Coating Line 2/3/4 by HiTo 3
Coil Coating Line 2/3/4 by HiTo 4
Coil Coating Line 2/3/4 by HiTo 5
Coil Coating Line 2/3/4 by HiTo 6
Coil Coating Line 2/3/4 by HiTo 7
Coil Coating Line 2/3/4 by HiTo 1
Coil Coating Line 2/3/4 by HiTo 2
Coil Coating Line 2/3/4 by HiTo 3
Coil Coating Line 2/3/4 by HiTo 4
Coil Coating Line 2/3/4 by HiTo 5
Coil Coating Line 2/3/4 by HiTo 6
Coil Coating Line 2/3/4 by HiTo 7

Coil Coating Line 2/3/4 by HiTo

Inquiry
Send your inquiry
HS Code
8420100090
Specification
2500*1690*1790
Rollers
2/3/4
Weight
4.5t
Coating
Coil Coating

Product Overview

Here’s a summary of the key points regarding the "Coil Coating Line 2/3/4 by HiTo":

Coil Coating Line 2/3/4 by HiTo 8
Coil Coating Line 2/3/4 by HiTo 9

Product Features

**Product Overview**: The Coil Coating Line by Weifang HiTo Equipment Engineering Co., Ltd. is designed for the continuous coating of various steel and aluminum substrates. It accommodates multiple materials, such as electro-galvanized plates and aluminum coils, with a processing capacity ranging from 30,000 to 300,000 tonnes per year.

Product Value

**Product Features**: The equipment supports a variety of specifications, including a strip steel thickness of 0.12-1.8mm and width of 600-1650mm. It offers adjustable coating thicknesses, ranging from 5-25μm for the front face and 5-15μm for the back face, with process speeds of 30-200m/min. Additionally, it includes a Pattern Printing System for producing decorative surfaces.

Coil Coating Line 2/3/4 by HiTo 10
Coil Coating Line 2/3/4 by HiTo 11

Product Advantages

**Product Value**: HiTo provides cutting-edge technology at competitive prices, coupled with comprehensive support services including equipment design, installation, training, and ongoing technical assistance. This approach ensures customers have a tailored solution aligned with their specific production needs and goals.

Application Scenarios

**Product Advantages**: The product stands out due to its flexibility in configuration, quality precision control, and the capability to produce a wide range of coated products. This adaptability makes it suitable for diverse applications in the coating industry.

**Application Scenarios**: The Coil Coating Line is applicable in industries that require high-quality coated steel and aluminum products for construction, automotive, and decorative purposes. Its ability to produce various patterns and finishes makes it ideal for companies seeking to enhance the aesthetic appeal of their materials.

Coil Coating Line 2/3/4 by HiTo 12
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
