Continuous Metallic Coating&Painting Lines - Color Recovery Line and Color Coating Line
Quick Detail
are of reasonable design, fine workmanship, well-chosen materials, and excellent quality. HiTo Continuous Metallic Coating&Painting Lines, Color Recovery Line, Color Coating Line is manufactured with the aid of pioneering techniques. The outstanding quality of the product guarantees the stability of the function. Weifang HiTo Equipment Engineering Co.,Ltd strictly follows the ISO9001 international quality certification system to manage and control the production process.
Product Description
Weifang HiTo Equipment Engineering Co.,Ltd
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
- Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
- Raw material:cold rolled strip,GI,GL,aluminum strip, 3-15Tons
- Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
- Process speed: 30 - 200m/min
- Production capacity: 30,000-300,000 Tonnes/year
Process Flow of the color coating line:
We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support
| Nominal Thickness | Allowable Deviation of Thickness in Case of the Following Thicknesses | |||
| General Precision PT.A | High Precision PT.B | |||
| ≤1200 | >1200-1500 | ≤1200 | >120-1500 | |
| 0.20-0.40 | ±0.05 | ±0.06 | ±0.03 | ±0.04 |
| >0.40-0.60 | ±0.06 | ±0.07 | ±0.04 | ±0.05 |
| >0.60-1.0 | ±0.07 | ±0.08 | ±0.05 | ±0.06 |

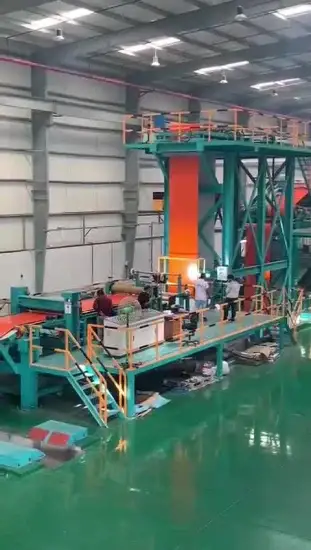

Factory
Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 850-1000 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
Company Introduction
Weifang HiTo Equipment Engineering Co.,Ltd, lying in is a professional company. We focus on the business of Our company perseveres in the philosophy of 'high quality, sustainable development', and sticks to the spirit of 'being faithful and people-oriented'. We are committed to becoming an outstanding enterprise in the industry. HiTo Engineering has a group of professional management teams and experienced production teams, which provides a strong guarantee for quality products. HiTo Engineering always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
Please leave your contact information, HiTo Engineering will deal with your problems!
